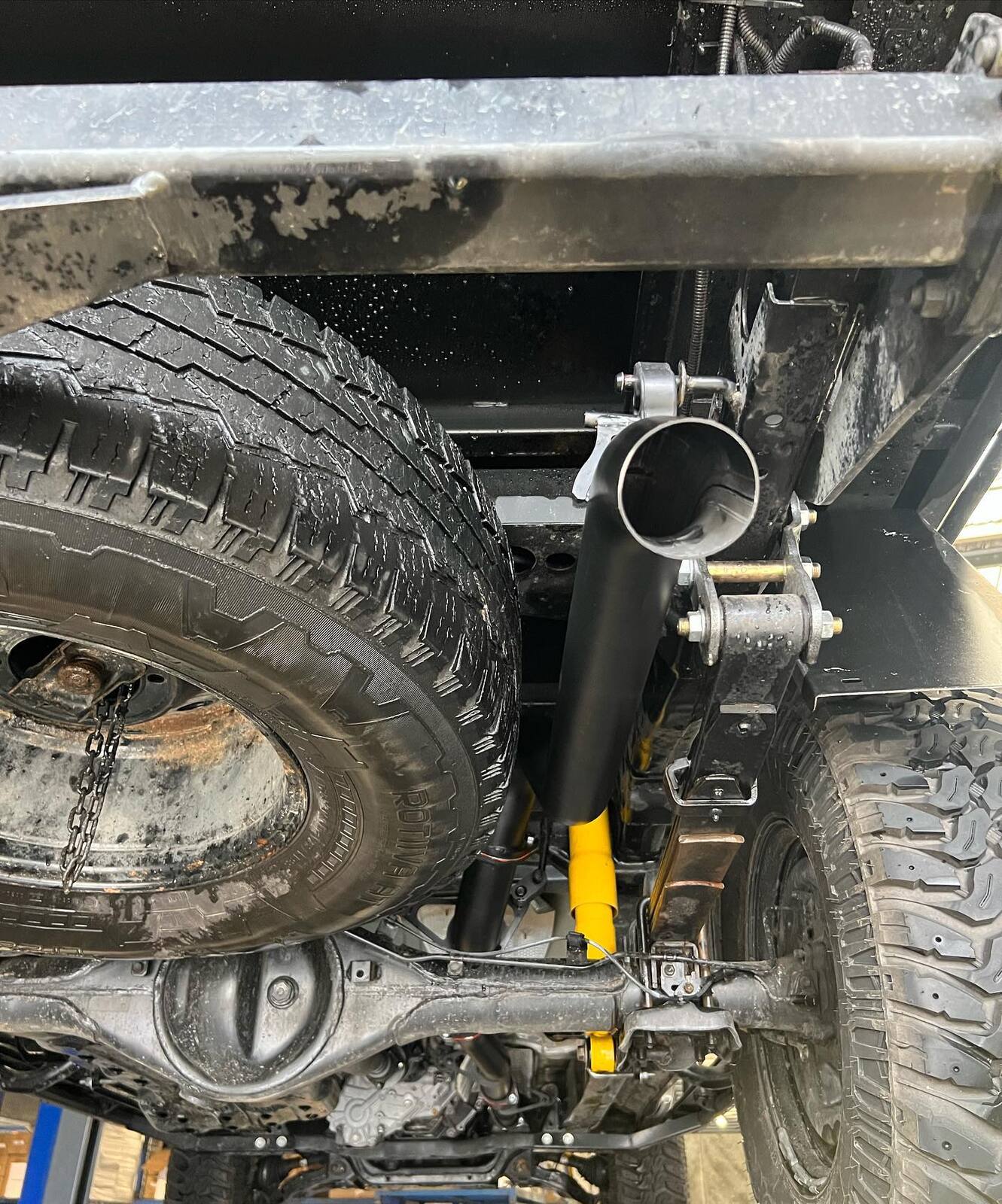

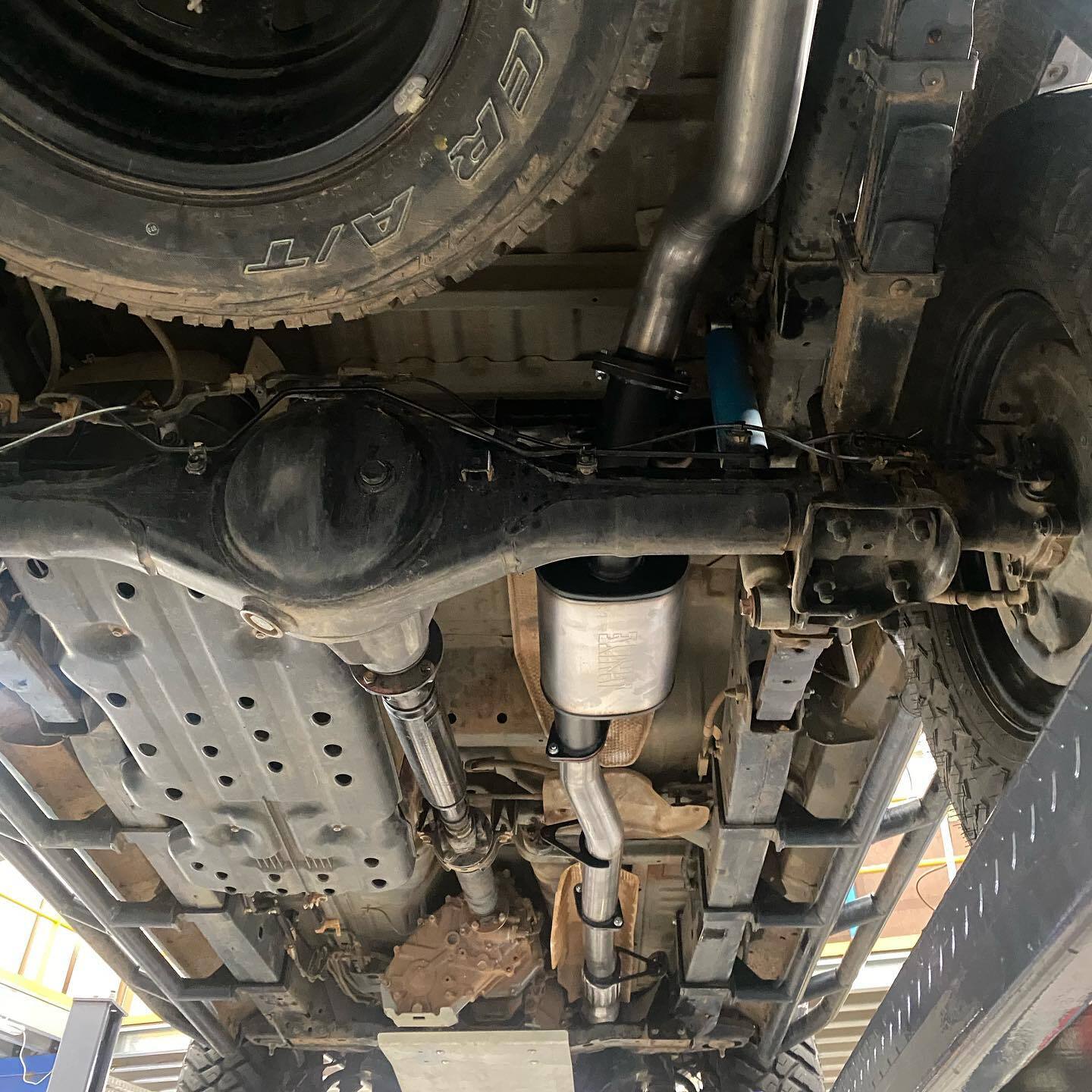

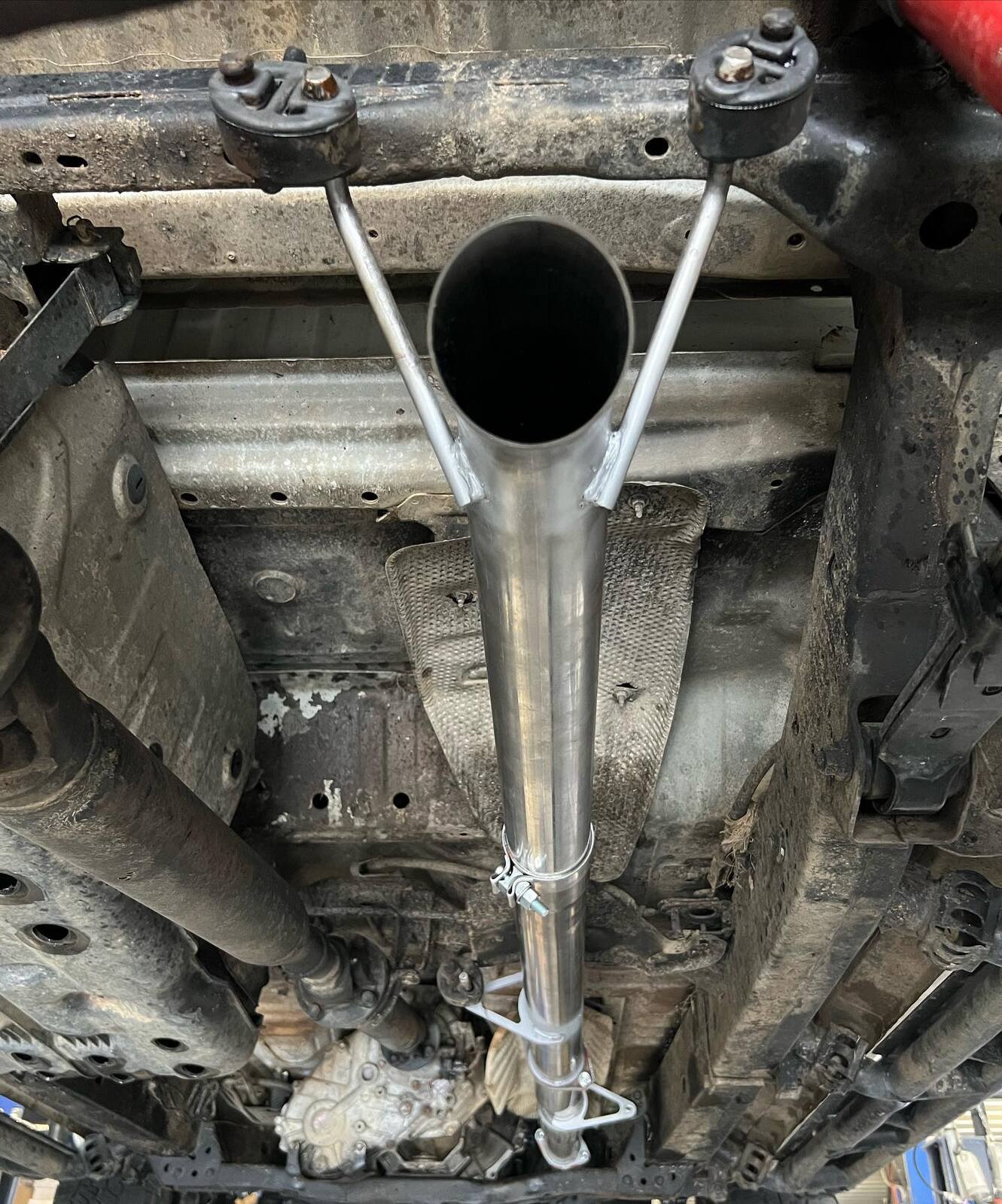

Toyota Hilux N70 3L D4D 3" Turbo-Back Exhaust System

Upgrade your Toyota Hilux N70 3L D4D turbo diesel (2005-2015, KUN Series) with an Australian-made Ignite 3" turbo-back exhaust built for the 1KD-FTV - improved flow, sharper throttle response, better economy and a deeper note.

CNC mandrel-bent 3" pipework with thick laser-cut flanges and EGT pyrometer fittings. Bolt-on - no ECU remap or dyno tune. Fits both Single and Dual Cab models.

Product Specifications

  • CNC mandrel-bent 3" (76mm) pipework
  • Thick laser-cut flange plates
  • EGT pyrometer fittings
  • Made in Australia

Available In

  • Aluminised steel
  • 409 grade stainless steel

Features

  • Direct fit for Toyota 1KD-FTV 3L D4D turbo diesel
  • Improved exhaust flow and throttle response
  • Enhanced fuel economy and towing performance
  • Deeper, more refined exhaust tone
  • Bolt-on installation - no ECU remapping or dyno tune required

Choose Your Configuration

Cat-equipped (road-legal):

  • Cat / Hotdog
  • Cat / Stainless Steel Muffler
  • Cat / Pipe
  • Cat / Diff Pipe

No cat (off-road only):

  • No Cat / Hotdog
  • No Cat / Stainless Steel Muffler
  • No Cat / Pipe
  • No Cat / Diff Pipe

Fitment

  • Vehicle: Toyota Hilux N70 (KUN Series)
  • Engine: 3L D4D turbo diesel, Toyota 1KD-FTV
  • Years: 2005-2015
  • Cab styles: Single Cab and Dual Cab

Warranty

Our 409 stainless steel and aluminised steel IGNITE Exhausts are backed by a 10 year warranty and 2 year Australian manufacturer warranty respectively.

Each product we sell comes with automatic guarantees that cannot be excluded under Australian law.

Should the item you receive be faulty in any way, please contact us and we"ll make sure the correct process is followed so the issue can be addressed as quickly as possible for you.

Varies between options.

Brand IGNITE Exhausts
Shipping Weight 8.0000kg
Shipping Width 0.390m
Shipping Height 0.250m
Shipping Length 1.130m
Shipping Cubic 0.110175000m3
  1. Remove rear tail pipe and muffler assembly from the vehicle.
  2. Remove centre connecting pipe from the vehicle.
  3. Remove catalytic converter from the vehicle.
  4. Remove turbo dump. We advise to spray the 3 nuts with WD40 before removing. Hint: It is easier to locate the turbo nuts from underneath the car using a 12mm spanner or single hex socket for the top turbo nut.
  5. Insert the supplied EGT plug into the turbo dump pipe.
  6. Fit the turbo dump pipe to the turbo outlet flange using the three supplied M8x1.25 nuts. Tighten all 3 nuts.
  7. Fit the cat/cat delete flex pipe to the to the turbo dump pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  8. Fit the connecting pipe to the cat/cat delete flex pipe and tighten finger tight with the supplied 3/8 UNC nuts. (Fit diff pipe section in the same format if that’s what you purchased and then continue with step 11)
  9. Fit the pipe only/resonator or muffler section to the connecting pipe and tighten finger tight with the supplied 3/8 UNC nuts.
  10. Fit the tailpipe to the pipe only/resonator or muffler section and tighten finger tight with the supplied 3/8 UNC nuts.
  11. Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call 1300 12 13 12 as soon as possible to avoid damaging the exhaust system.
  12. Enjoy your IGNITE exhaust!

Vehicle Applications

Make Model Year Start - Year End Series Body Type Engine Details Drivetrain
Toyota Hilux 2005 - 2015 Ute 3.0 D-4D Ute 3.0L | Diesel RWD
Toyota Hilux 2005 - 2015 Ute 3.0 D-4D Ute 3.0L | Diesel RWD
Toyota Hilux 2005 - 2015 N10,N20 Ute 3.0 D-4D 4WD Ute 3.0L | Diesel AWD
Toyota Hilux 2005 - 2015 KUN16 Platform/Chassis 3.0 D Platform/Chassis 3.0L | Diesel RWD
Toyota Hilux 2005 - 2015 Platform/Chassis 3.0 D-4D Platform/Chassis 3.0L | Diesel RWD
Toyota Hilux 2005 - 2015 N10,N20 Platform/Chassis 3.0 D-4D 4WD Platform/Chassis 3.0L | Diesel AWD
Toyota Hilux 2005 - 2015 N10,N20 Ute 3.0 D-4D 4WD Ute 3.0L | Diesel AWD
Toyota Hilux 2005 - 2015 KUN16 Ute 3.0 D Ute 3.0L | Diesel RWD
Toyota Hilux 2005 - 2015 KUN26 Ute 3.0 D-4D 4WD Ute 3.0L | Diesel AWD
Toyota Hilux 2005 - 2015 N10,N20 Platform/Chassis 3.0 D-4D 4WD Platform/Chassis 3.0L | Diesel AWD
Toyota Hilux 2005 - 2015 N10,N20 Platform/Chassis 3.0 D-4D Platform/Chassis 3.0L | Diesel RWD
