Product Details

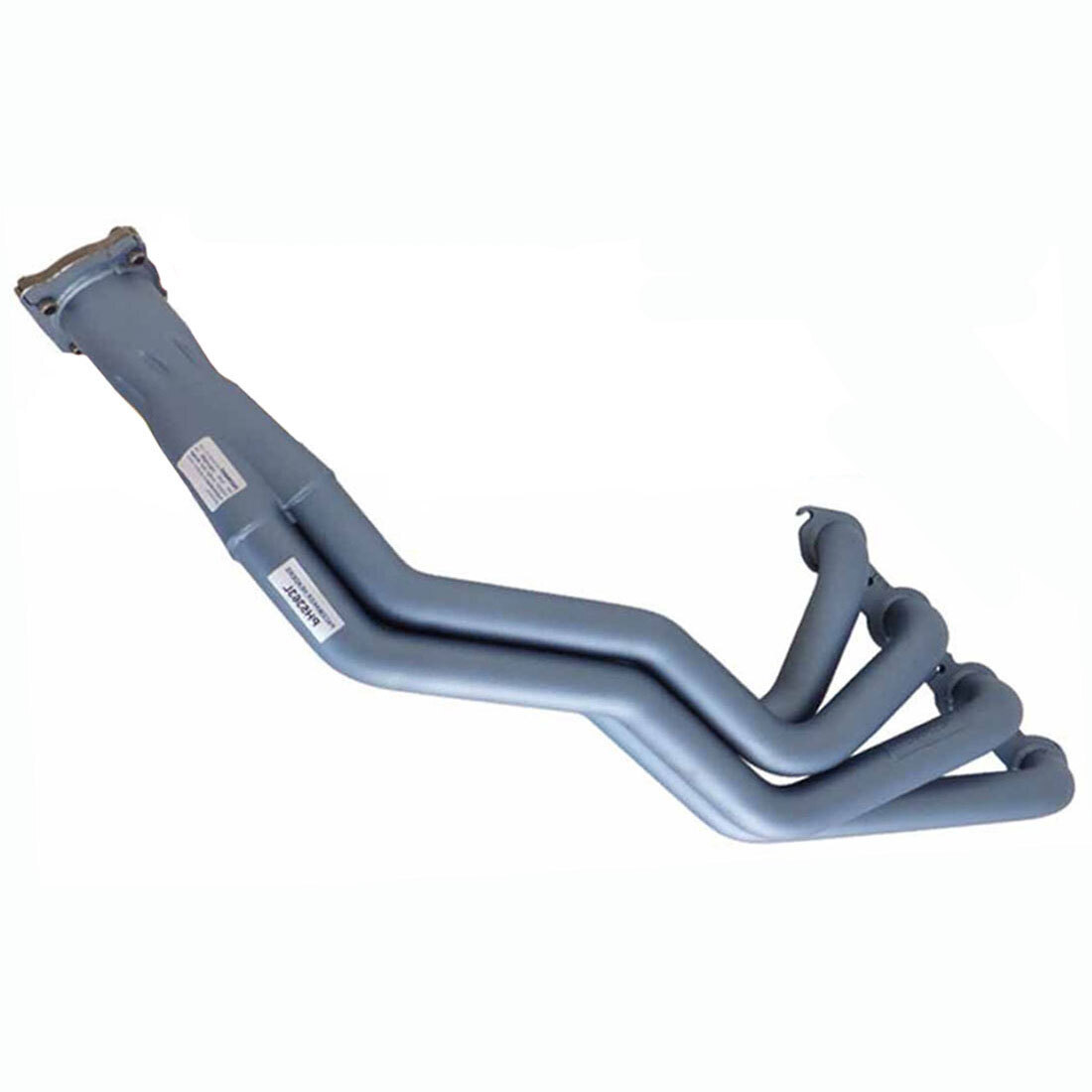

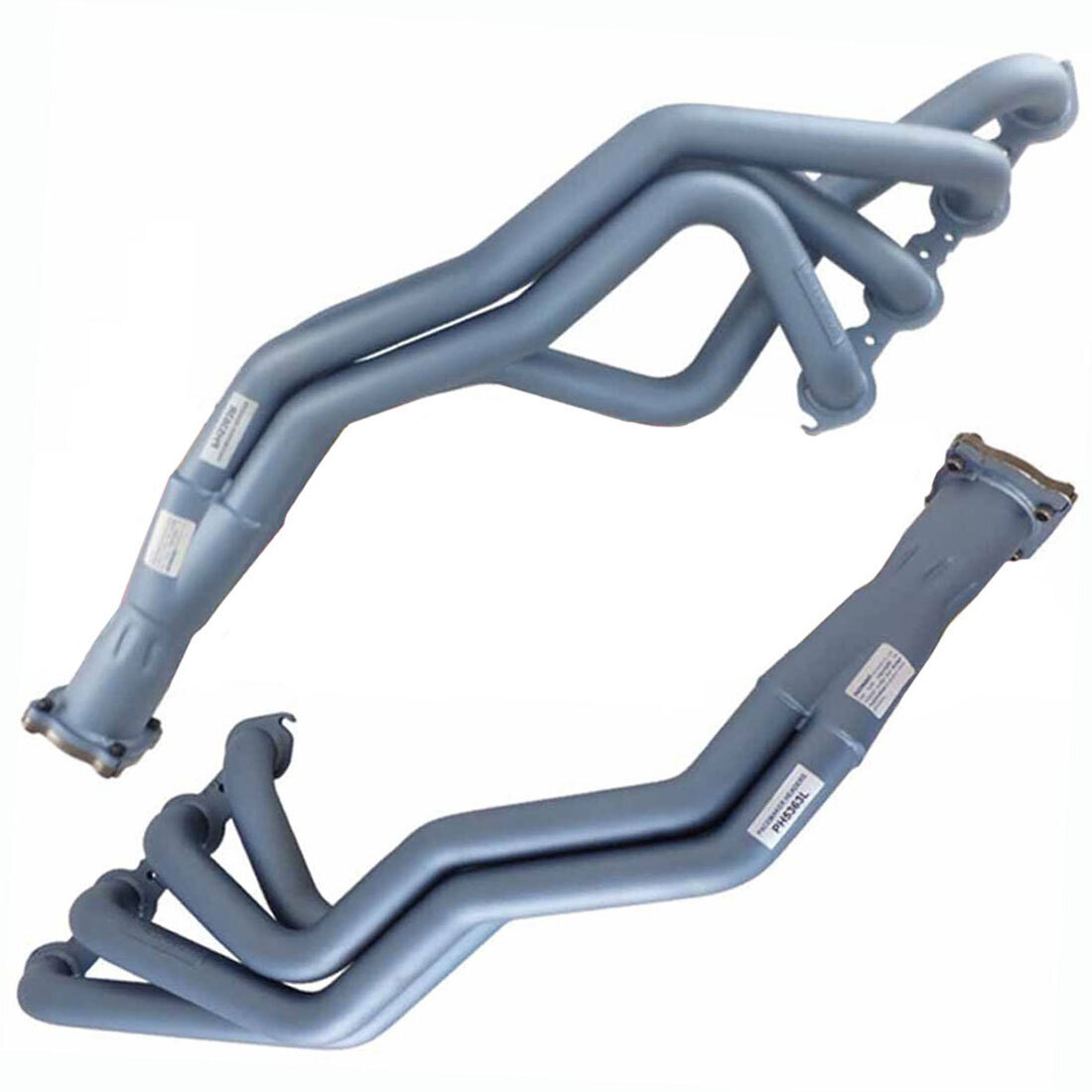

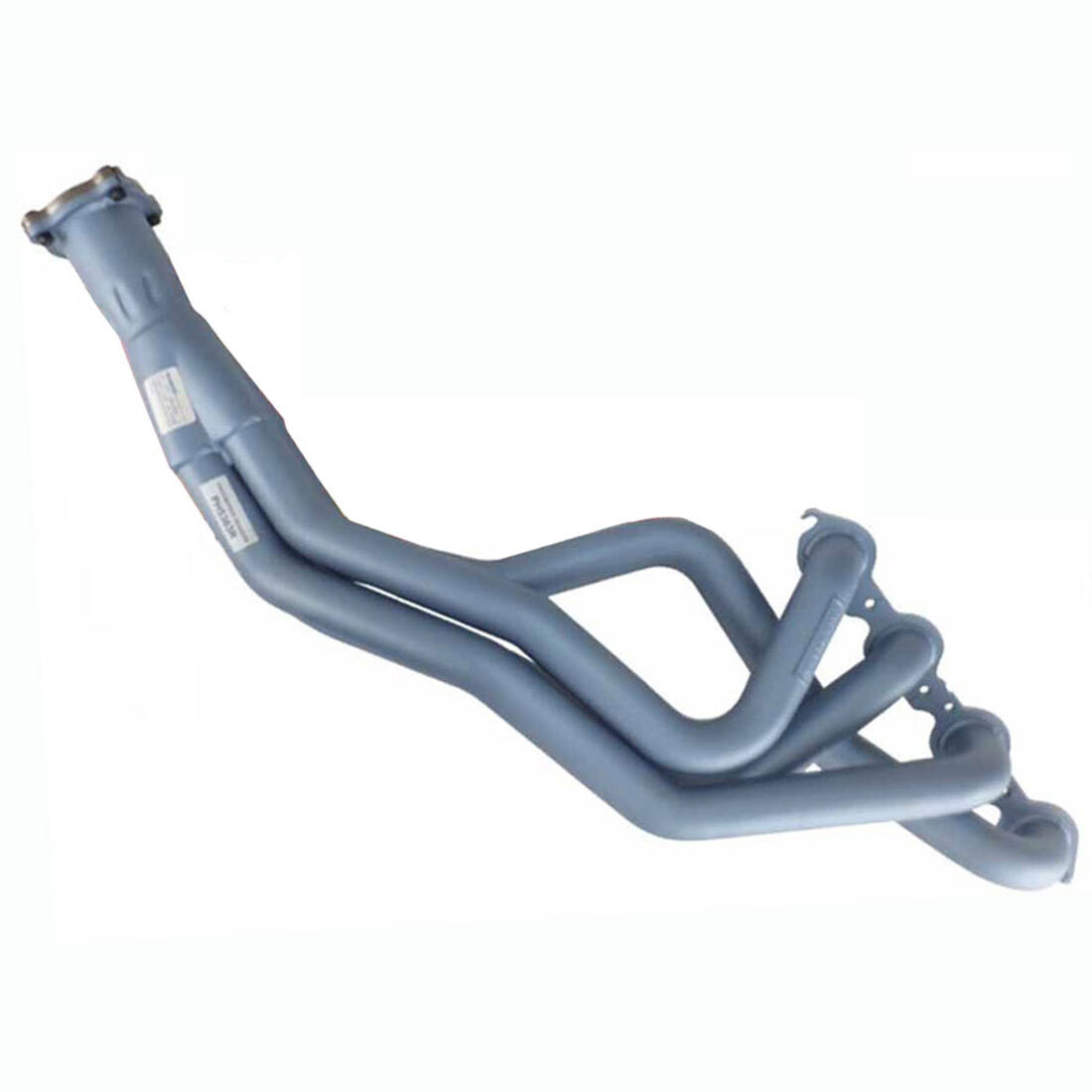

Pacemaker Headers to suit

Commodore models listed below

VT Series II, VX, VU, VY (VY Series I Only) (See important notes for more information)

Crewman models listed below

VY Series I

Monaro models listed below

V2

Statesman models listed below

WH, WK Series I

Engine V8

5.7 Litre LS1 (Gen III)

Manual & Automatic

TUNED design



Important Notes

• This kit has no Oxygen Sensor Wiring Loom Extensions. These are required for Commodore models VY Series II and VZ and Statesman/Caprice models WK Series II and WL.

• Designed for Modified Engines and Super Charged Applications

• Will not fit All Wheel Drive Commodore’s



Product Specs

Part #:	PH 5363
P/Steering:	Yes	Gasket:	DSF 138
Air Con:	Yes	Primary Pipe:	1⅞" (48mm)
Oxy Sen:	Yes	Secondary Pipe:	-
E.G.R:	N/A	Outlet:	3" (76mm)
Y Branch:	N/A	Fitting Time:	3 Hrs





***Disclaimer: Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.***
