Product Details

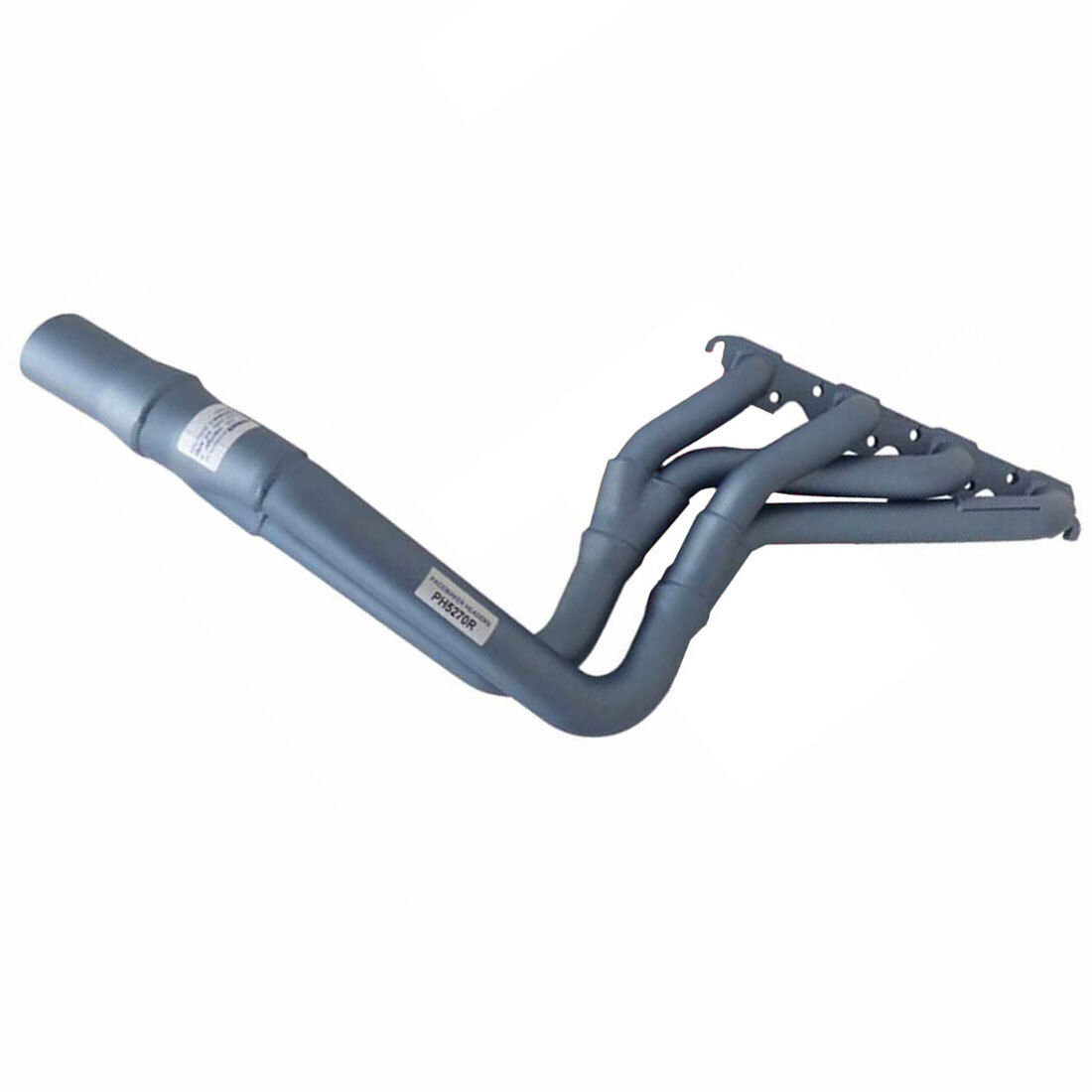

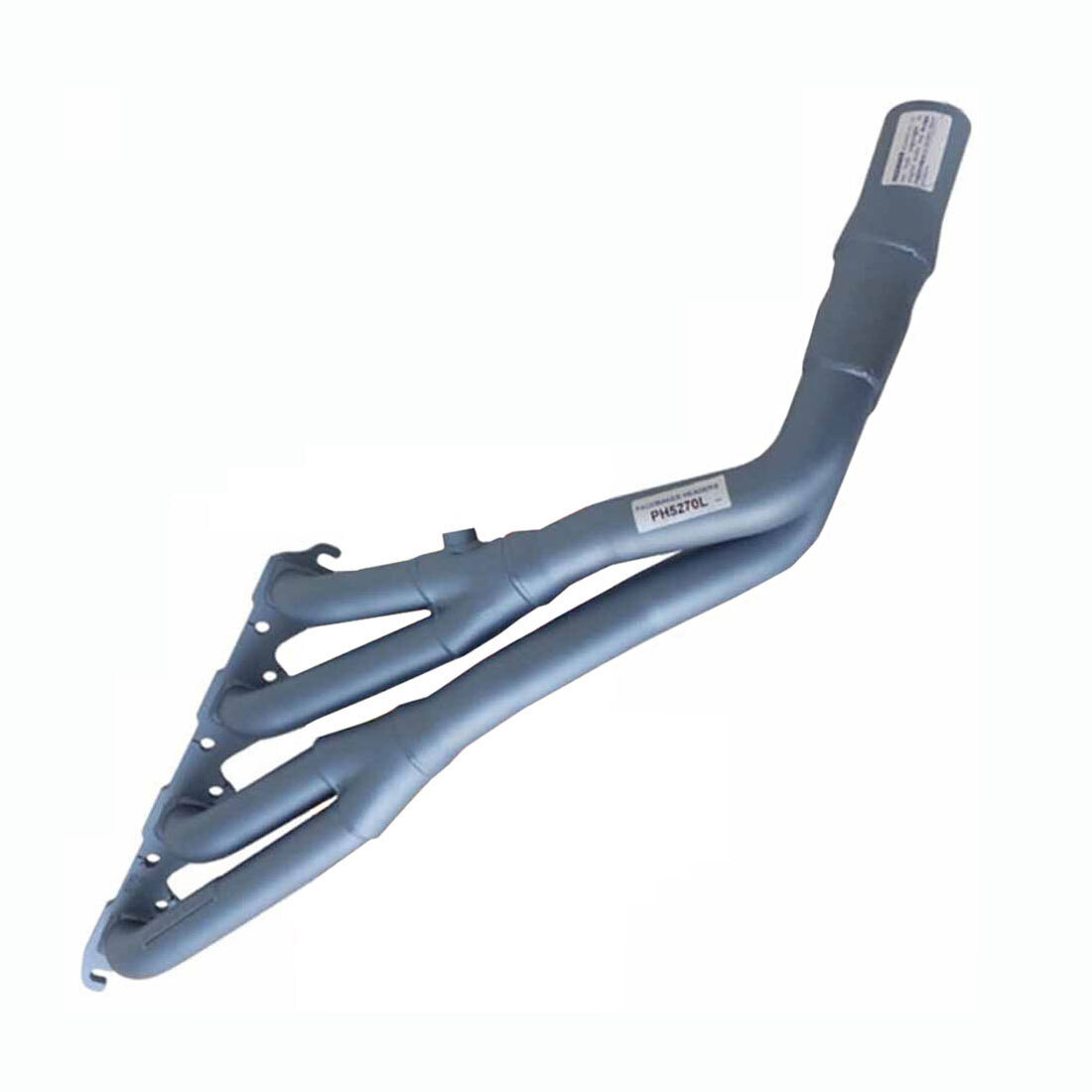

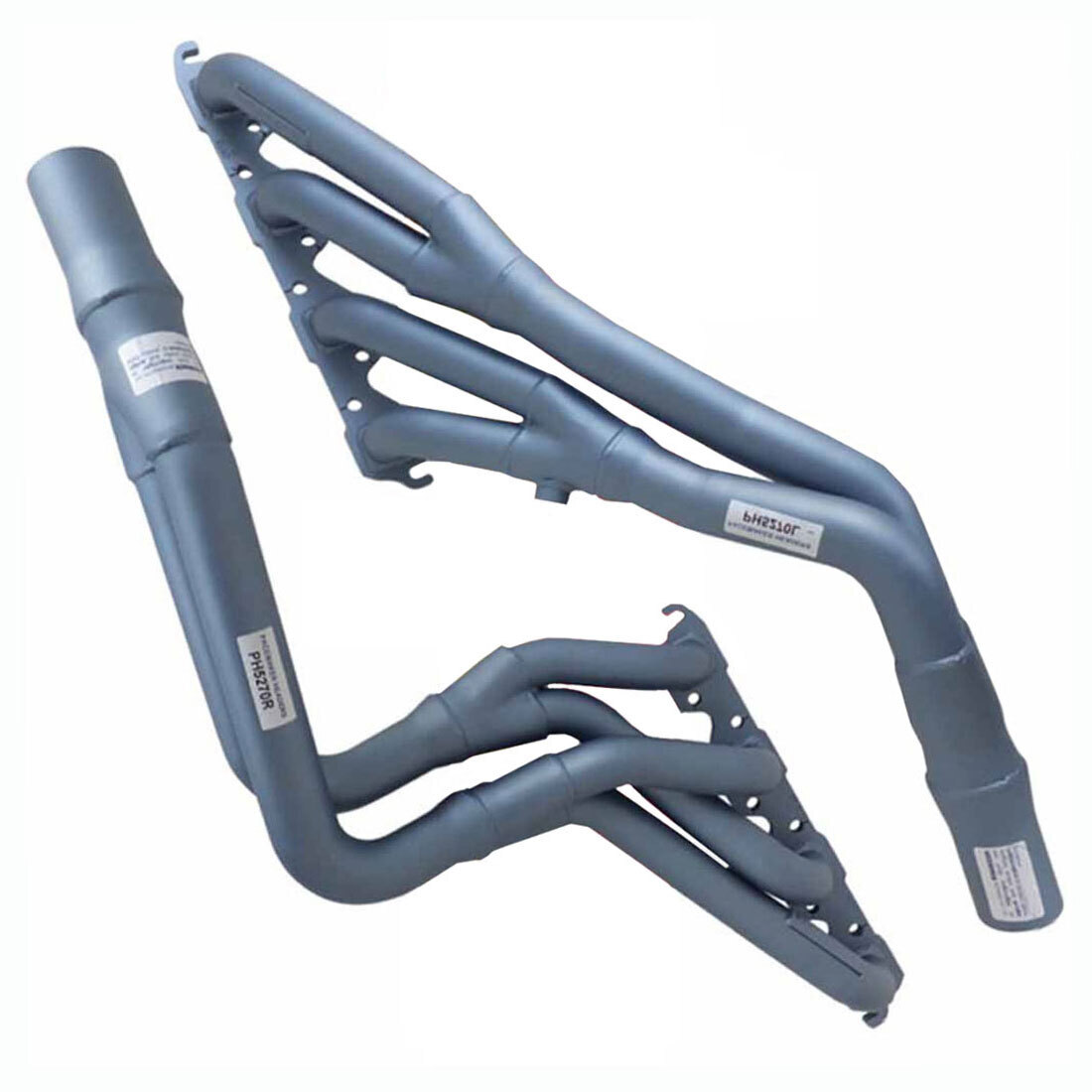

Pacemaker Headers to suit

Torana

LH-LX

Fitted with

5 Litre E.F.I. Motor (Engine Conversion - 304 5L Holden V8 from VN, VP, VR, VS or VT Series 1)

or E.F.I. Heads installed onto original Holden V8 253-308 Block

Fits Manual with internal slave cylinder & Automatic Transmissions

TRI-Y design



Important Notes

These Headers will fit the following gearboxes:

• Holden Trimatic

• Holden Turbo 400

• Holden Turbo 350

• Will fit with High Energy Sump HE2101 Part No.

• Will fit with A9X and L34 Sway Bar

• Commodore four speed automatic Turbo 700 with Hatfield rear cross member using Turbo 700 gear box mounts and 308 engine mounts



Product Specs

Part #:

PH 5260





P/Steering:

Yes

Gasket:

DSF 63

Air Con:

Yes

Primary Pipe:

1⅝" (41mm)

Oxy Sen:

Yes

Secondary Pipe:

1⅞" (48mm)

E.G.R:

N/A

Outlet:

2¼" (57mm)

Y Branch:

N/A

Fitting Time:




***Disclaimer: Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.***



Brand Pacemaker
Shipping Weight 12.0000kg
Shipping Width 0.390m
Shipping Height 0.250m
Shipping Length 1.130m
Shipping Cubic 0.110175000m3
Unit Of Measure ea
