Product Details

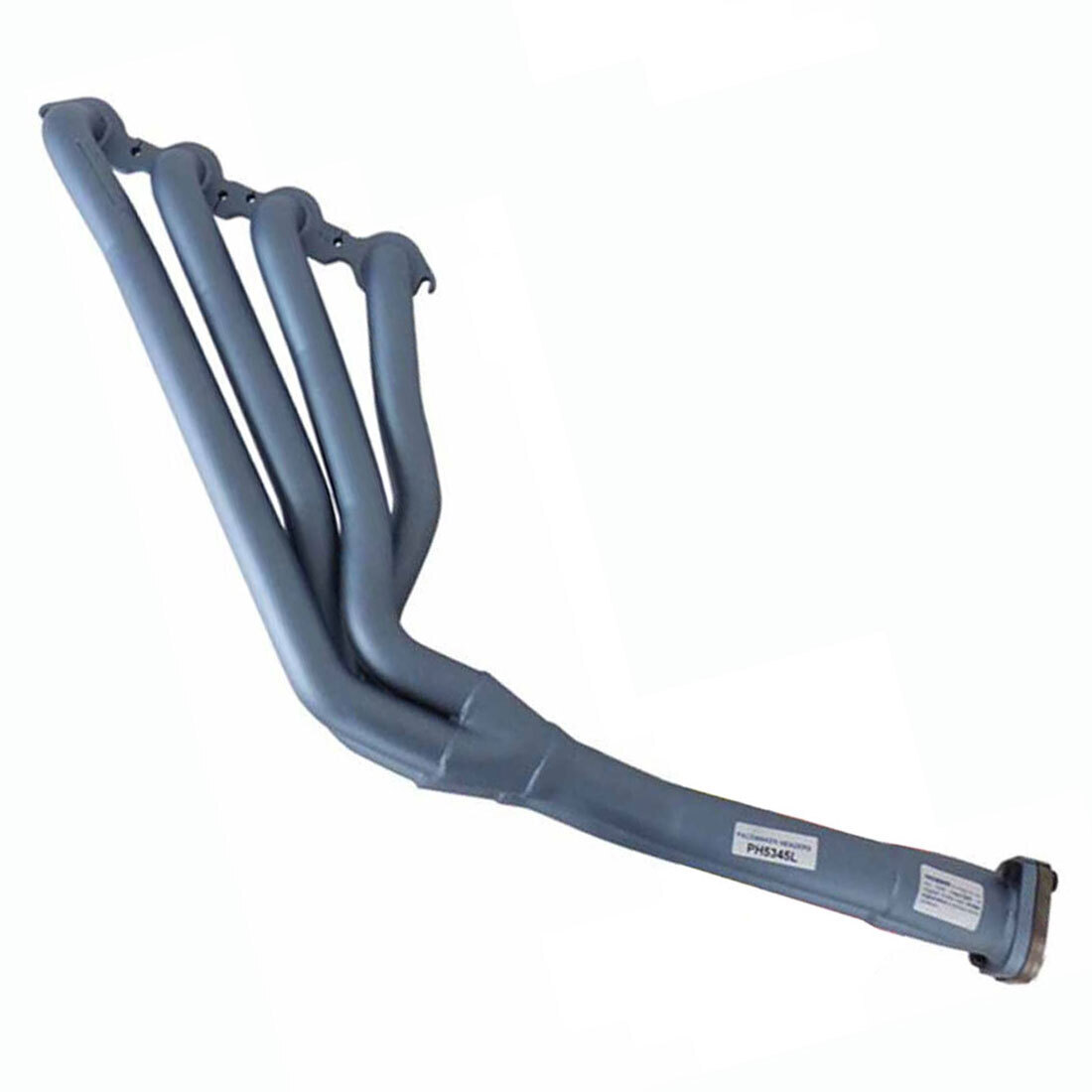

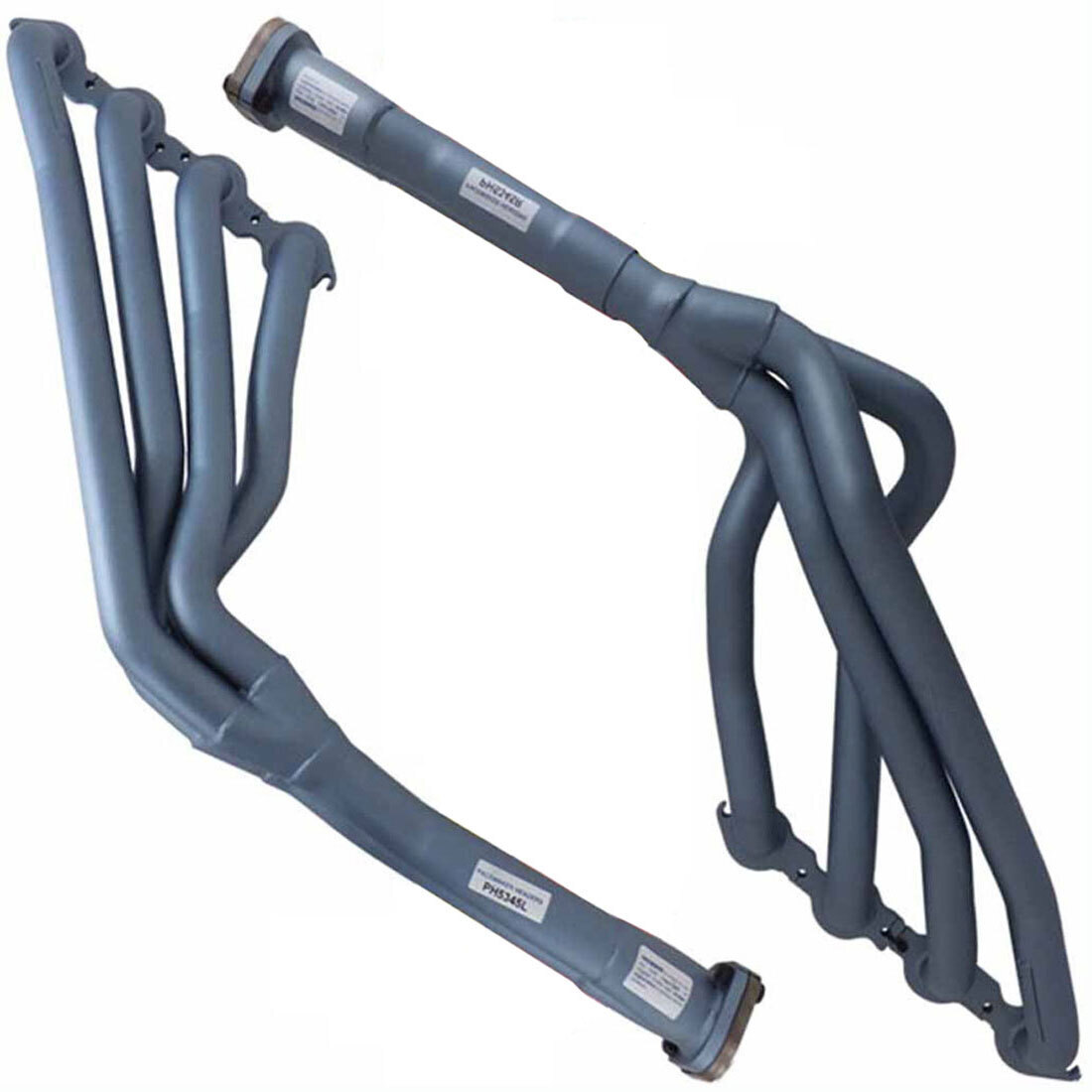

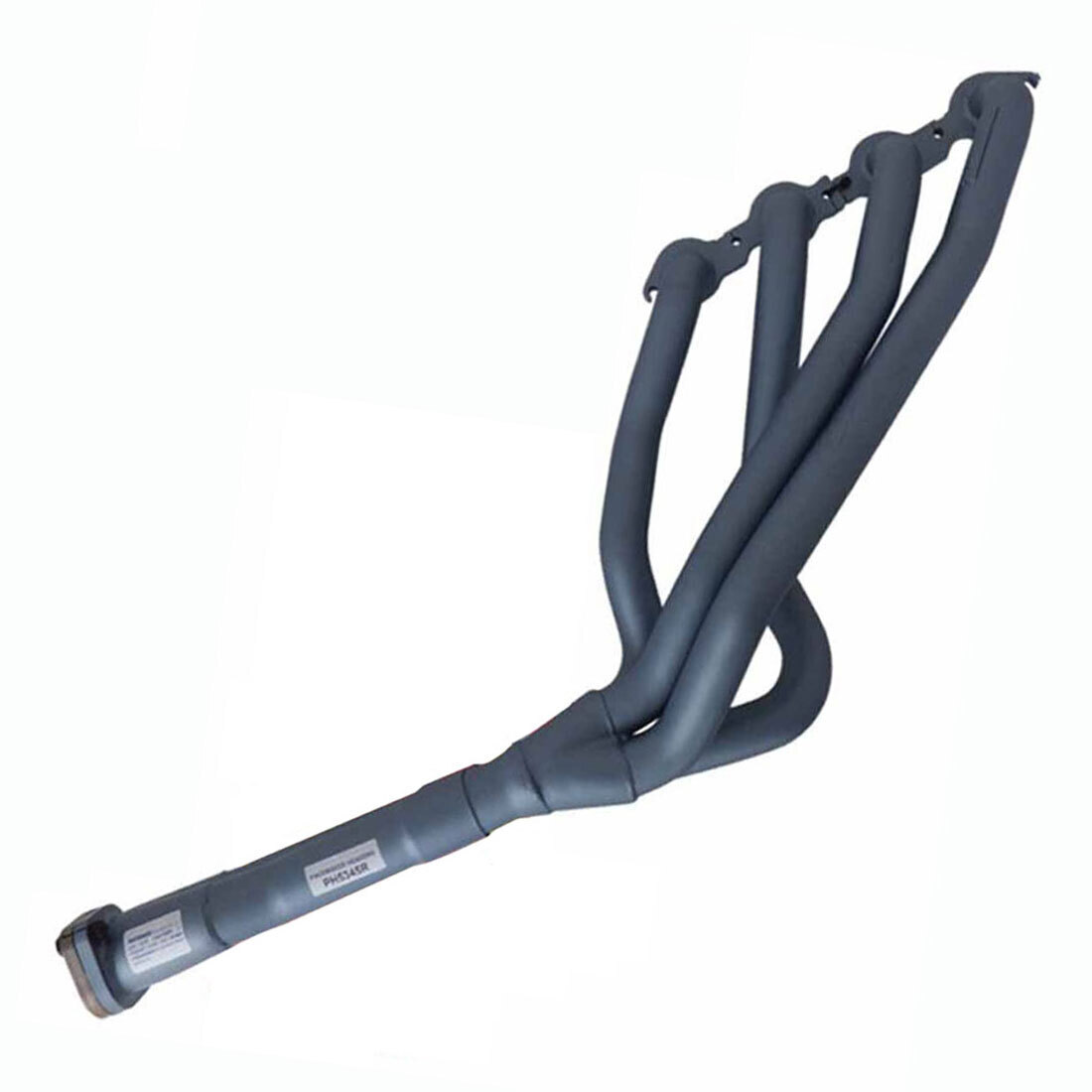

Pacemaker Headers to suit

Commodore

VB-VC-VH-VK-VL-VN-VP-VR-VS

Engine Conversion - LS Engines

5.7 Litre, 6.0 Litre, 6.2 Litre

LS1 (Gen III), LS2 and LS3 (Gen IV)

Manual & Automatic

TRI-Y design



Important Notes

• VB-VK Commodore with Manual Steering Rack and Power Steering K-frame Only

• To guarantee fitment of this header we recommend using our engine mounts PEMPLS18

• To fit to VL with RB30 K-frame require PEMPLS1-6L & R and PEMPLS1-A6L & R

• Refer ‘Accessories’ section for Engine Mount Plates

• When converting in a VR/VS you can use our Gear Box Cross Members - PGXMLS1-A (Automatic) or PGXMLS1-M (Manual)



Product Specs

Part #:	PH 5345
P/Steering:	Yes	Gasket:	DSF 138
Air Con:	Yes	Primary Pipe:	1¾" (44mm)
Oxy Sen:	Yes	Secondary Pipe:	2" (51mm)
E.G.R:	N/A	Outlet:	2½" (63mm)
Y Branch:	N/A	Fitting Time:	5 Hrs





***Disclaimer: Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.***
