Product Details

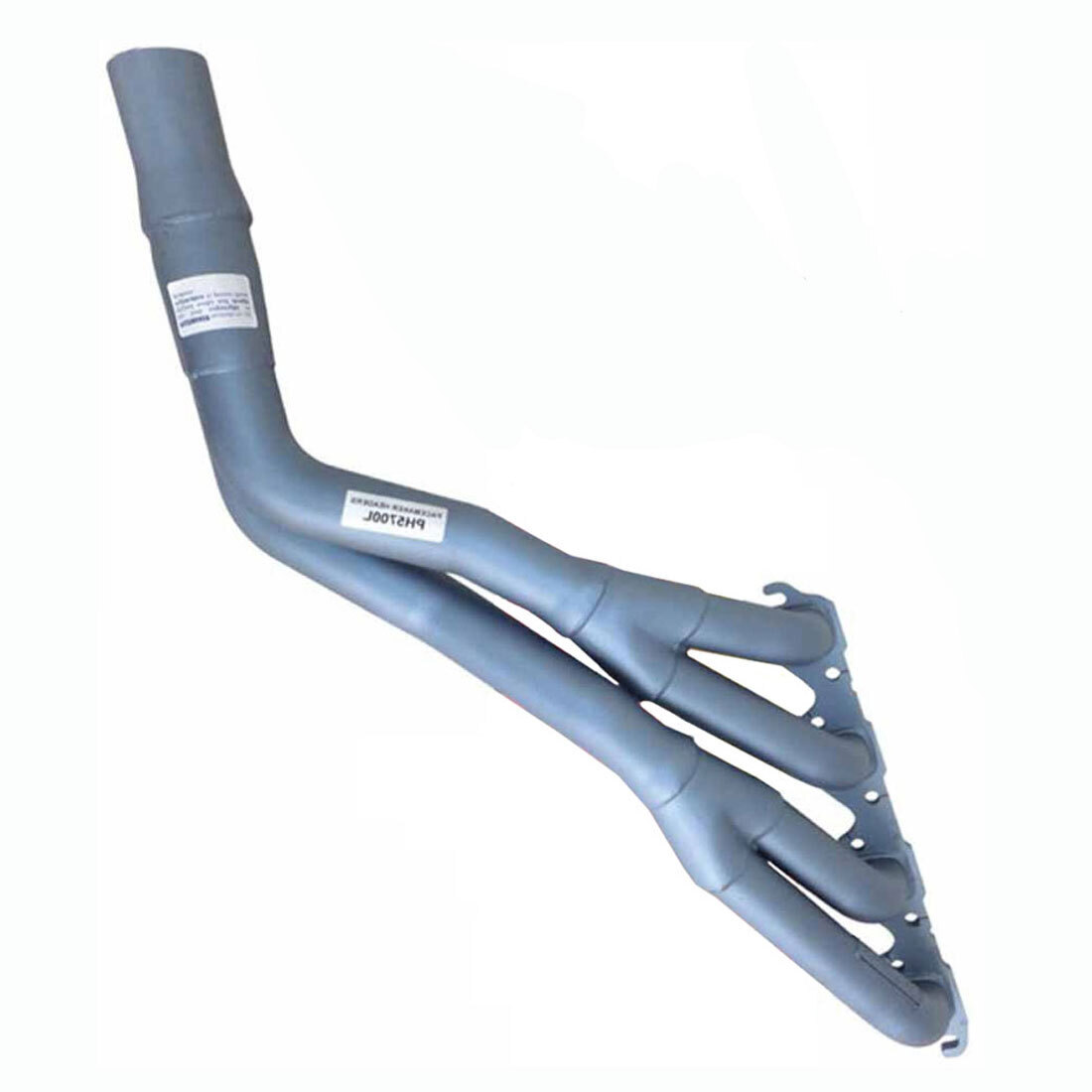

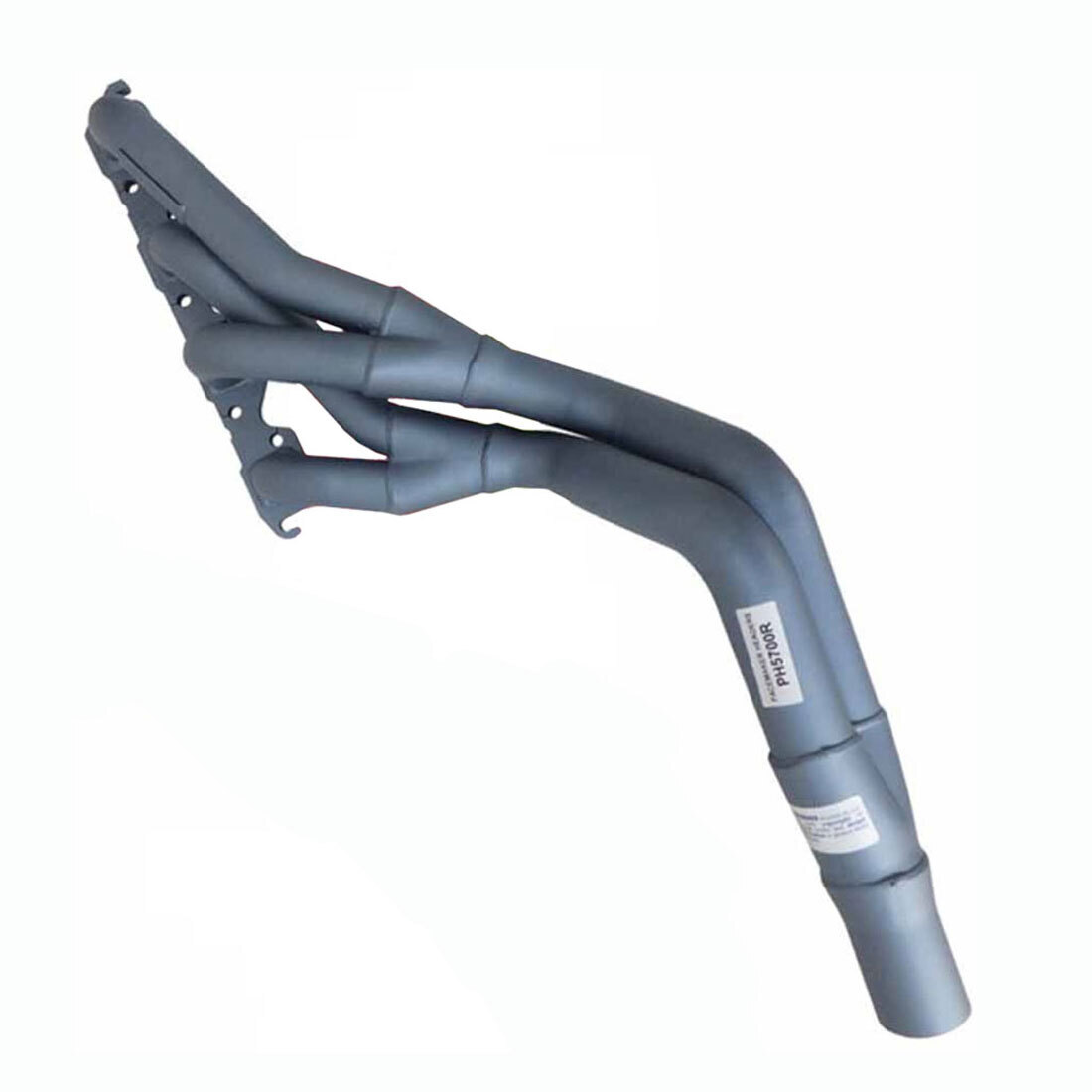

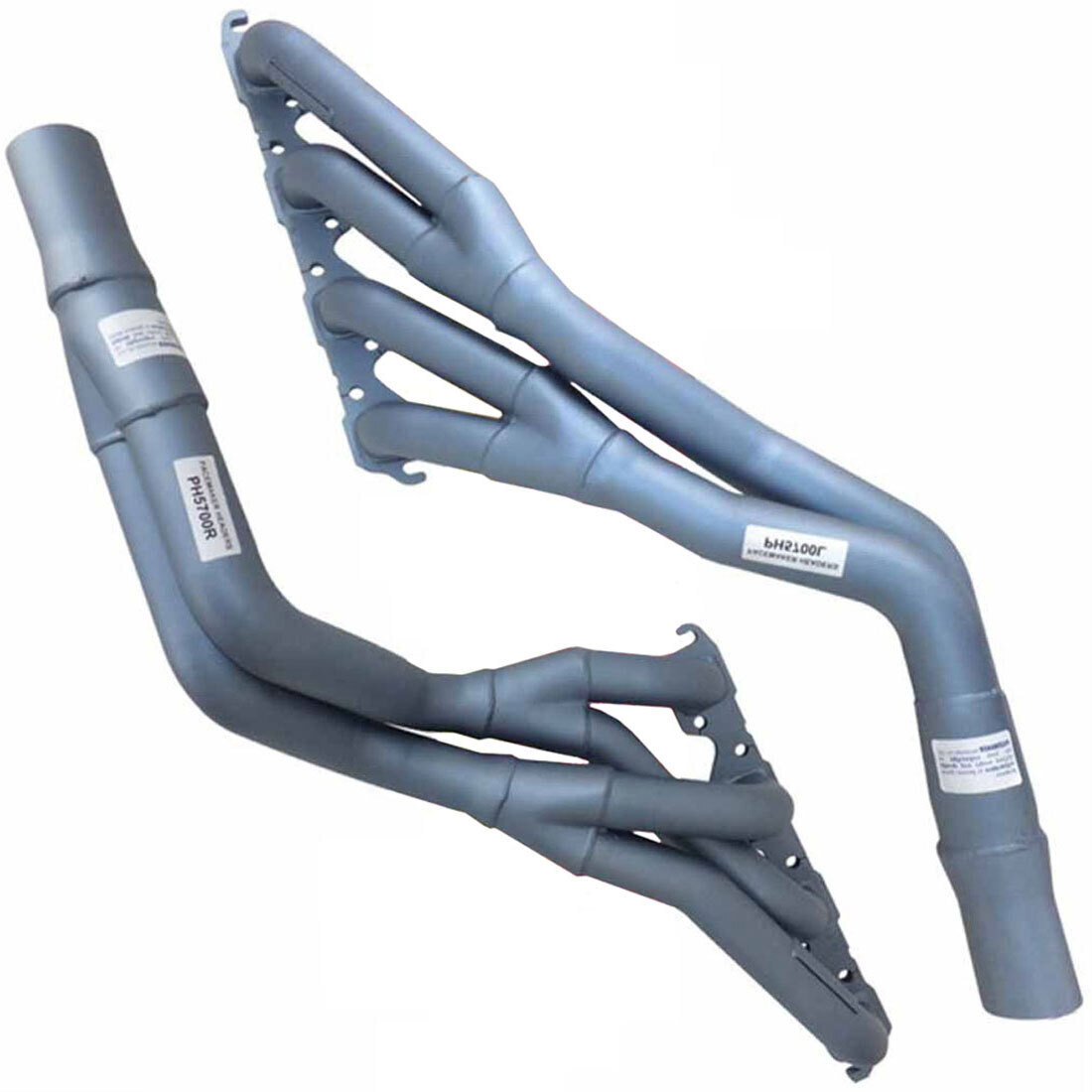

Pacemaker Headers to suit

Commodore

VB-VC-VH-VK

Fitted with

5 Ltr VN-VT 304 E.F.I. Motor or 308 with E.F.I Heads

TRI-Y design



Important Notes

• Will not fit with manual steering K-frame

• Will fit VL with VN-VS rack

Additional Information:

These Headers will fit the following gearboxes:

• Australian four speed with cable clutch

• Commodore VN-VS five speed

• Holden Trimatic

• Holden Turbo 400

• Holden Turbo 350

• Commodore Turbo 700 four speed auto

• Commodore Getrag five speed (VT gear box)

• Ford Top Loader

• Toyota Supra five speed with Hatfield bellhousing &

crossmember



Product Specs

Part #:	PH 5600
P/Steering:	Yes	Gasket:	DSF 63
Air Con:	Yes	Primary Pipe:	1⅝" (41mm)
Oxy Sen:	Yes	Secondary Pipe:	1⅞" (48mm)
E.G.R:	N/A	Outlet:	2¼" (57mm)
Y Branch:	N/A	Fitting Time:	3 Hrs





***Disclaimer: Check over exhaust making sure everything is aligned and then tighten all bolts and nuts from the front to back of the vehicle. If you have any fitting/alignment issues, please call us as soon as possible to avoid damaging the exhaust system.***
