Fitting Instructions – IGNITE 4” DPF-Back Side Exit Exhaust System
Vehicle Application: Toyota Land Cruiser 79 Series

Before You Begin:
Ensure the vehicle is securely parked on a flat surface and safely supported. Always allow the exhaust system to cool down before commencing removal or installation.

Installation Steps

1. Remove the Factory Exhaust Components
   • Detach the factory tailpipe and rear muffler assembly.
   • Remove the factory connecting pipe and the DPF connecting pipe.
   • Disconnect the O2 sensor plug.
2. Transfer the O2 Sensor
   • Carefully unscrew the O2 sensor from the factory exhaust.
   • Reinstall the O2 sensor into the new IGNITE DPF connecting pipe.
3. Install Rear Rubber Mount
   • Fit the supplied rubber mount to the bracket located on the rear side-exit exhaust section.
   • Leave the mount finger-tight at this stage.
   • Refer to Image 1 for correct strap folding orientation.
4. Install Rear Section First
   • Begin installation with the rear section, which mounts over the chassis.
   • Align the bolt from the rubber mount into the designated hole on the crossmember.
   • Refer to Image 2 for guidance.
   • Secure the bolt finger-tight only at this stage.

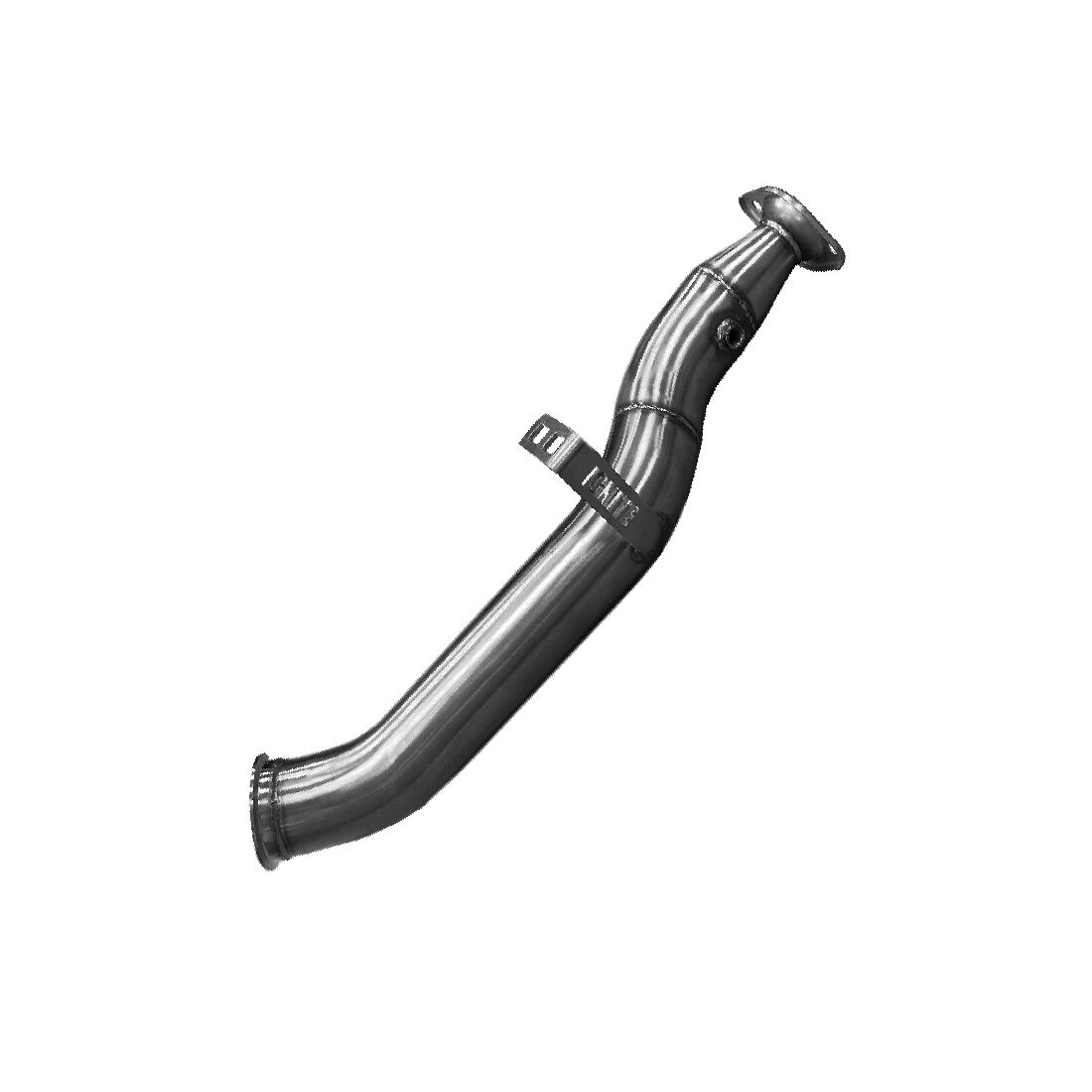

5. Fit the DPF Connecting Pipe
   • Connect the DPF pipe to the back of the DPF using the original factory spring bolts.
   • Tighten only finger-tight for now.
6. Secure Factory Rubber Mount
   • Position the supplied rectangular stainless steel plate over the factory rubber mount.
   • Reuse the two factory nuts to secure the plate.
7. Join Sections with V-Band Clamp
   • Use the V-Band clamp to join the rear section and DPF connecting pipe.
   • Tighten the clamp until the connection is snug but still allows minor adjustment.
8. Check Clearances
   • Inspect the entire system for adequate clearance around chassis components, suspension, and bodywork.
   • If necessary, insert temporary spacers where the exhaust is close to nearby surfaces.
9. Final Tightening Sequence
   • Starting from the front of the vehicle, progressively tighten all fittings and fasteners toward the rear.
   • Remove any temporary spacers once everything is secure.
10. Final Check and Test Drive

• Double-check all bolts and clamps for tightness.
• Reconnect the O2 sensor plug.
• Start the vehicle and listen for leaks or abnormal noises.
• Take the vehicle for a test drive to experience the enhanced V8 sound of your new IGNITE exhaust system.

Installation Complete
Enjoy your new IGNITE 4” DPF-Back Side Exit Exhaust System and the improved performance and sound it brings to your Toyota Land Cruiser 79 Series.

Image 1

Image 2
