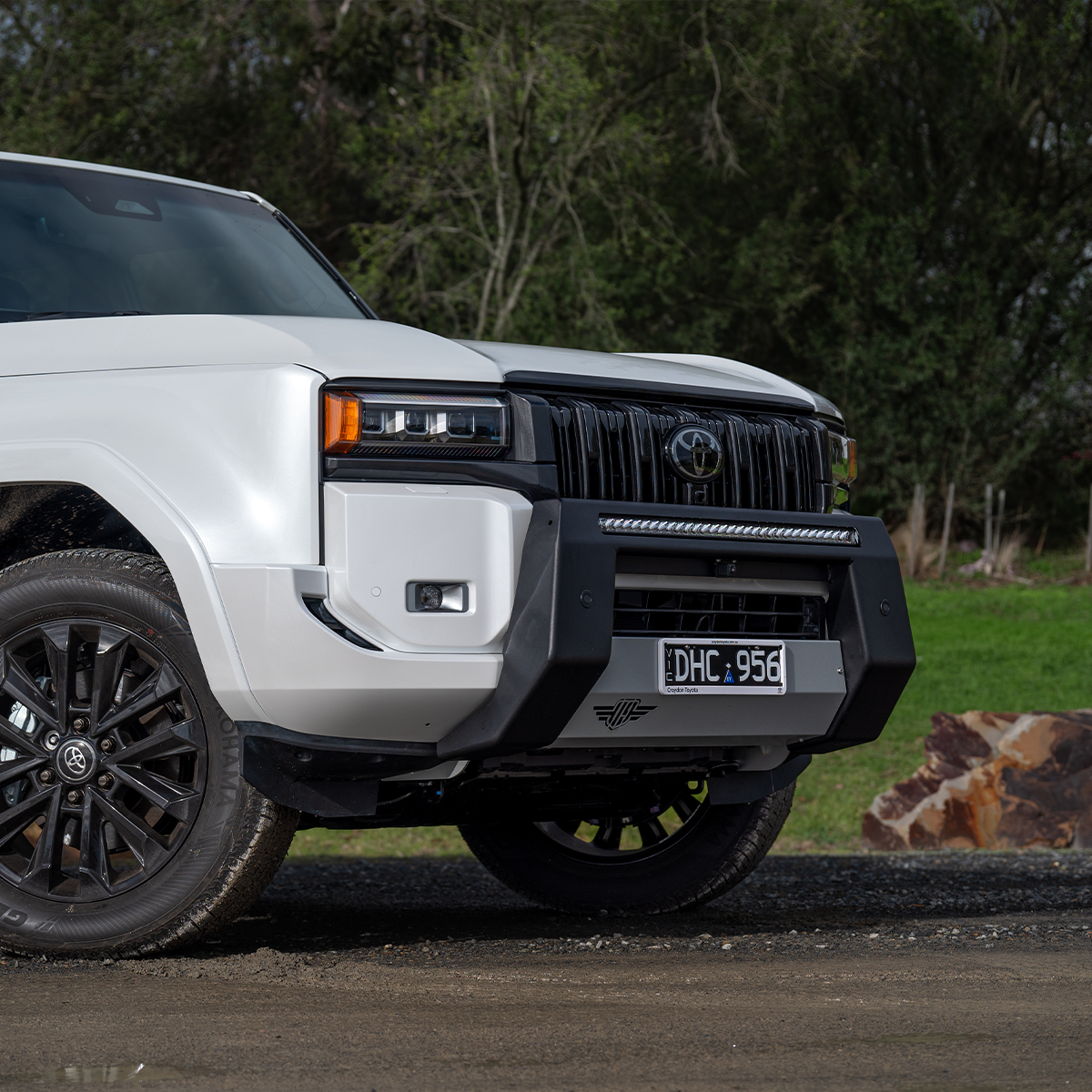

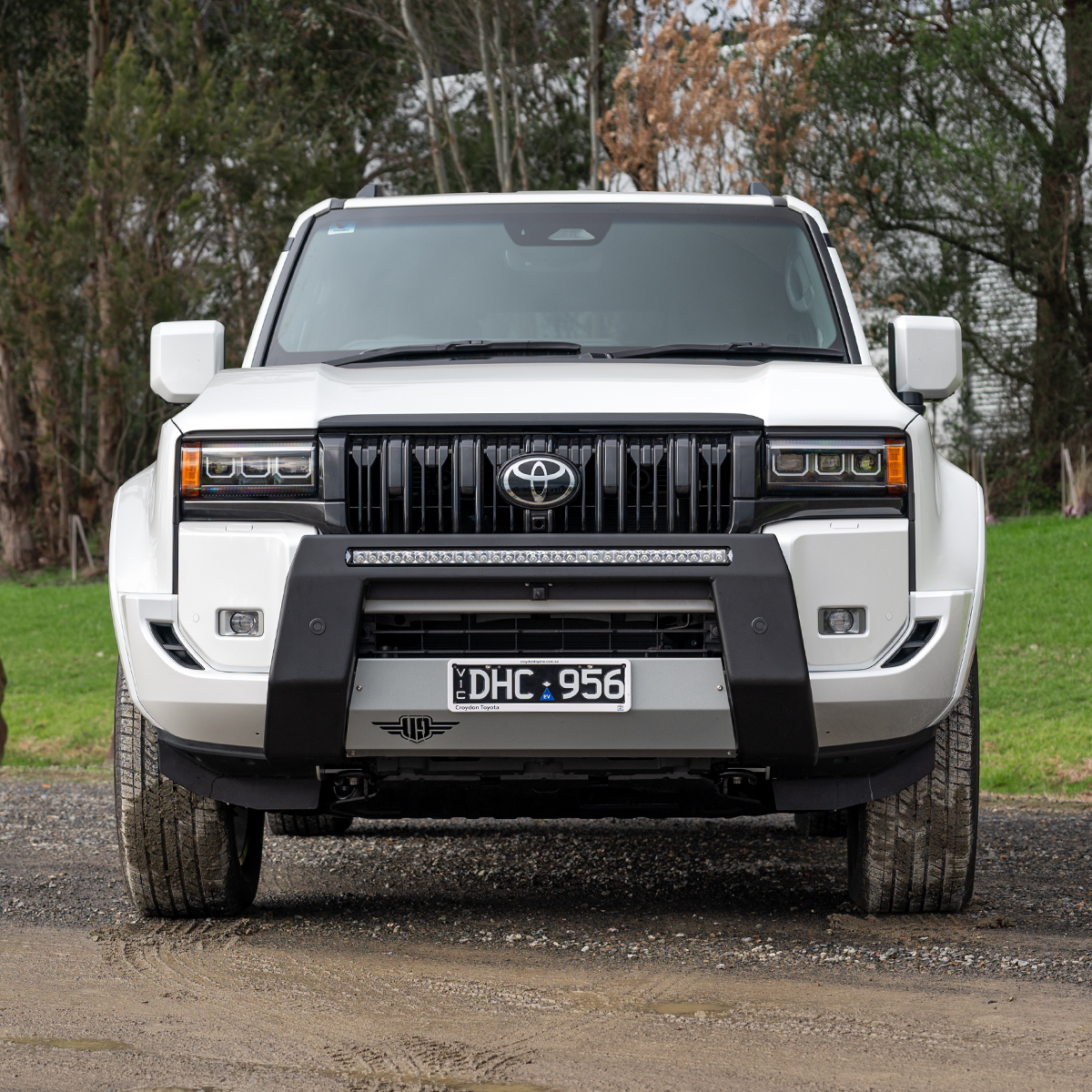

Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.

Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.

Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.

Finished in a Dulux Mannex Black textured powder coat with a Satin Silver coated centre pan for corrosion protection and a modern feel.

Compatibility:
Compatible with the following Prado Badge Models:

GX
GXL
Altitude

Features:
Australian-made: Designed, engineered, and manufactured in Australia.
Steel Frame: 100% Australian-made steel.
Airbag Compatible: Tested for airbag compatibility
ADR Compliant: Designed to meet ADR standards.
Low Profile: Over bumper design with minimal forward projection
LED Lighting: Includes an Ultimate9 LED Light Bar 30"
Lightweight: Weighing under 30Kg with included light bar
Corrosion Protected: Zinc-plated.
Finish: Dulux Mannex black textured powder coat with Satin Silver powder coated centre pan

Kit Includes:
Nudge Bar
Ultimate9 LED Light Bar 30"
Ultimate9 Auxiliary Loom Twin Output Connector
Front Camera Relocation Bracket
Piggyback Harness
OE Style Light Switch
Installation Hardware
Instructions

Optional Lighting:
The Toyota Landcruiser Prado 2024 - ON (J250) Ultimate Nudge Bar includes provision to fit the following additional light bars:

Ultimate9 LED Light Bar 26" - Installs on top of the Nudge Bar
Light Bars can not be fitted underneath as the Front Camera is relocated to this spot.

Specifications:
Material: 3mm mild-steel
Protective coat: Zinc Plated
Finish Coat: Mannex Black textured Powder Coat
Finish Centre Pan Coat: Satin Silver Powder Coat
ADR Compliant
Airbag Compatible
Dimensions: (L) x (W) x (H)
Weight: < 30Kg

Barcode 787099452070
Brand Ultimate9
Shipping Weight 28.6000kg
Shipping Width 0.057m
Shipping Height 0.037m
Shipping Length 0.122m
Shipping Cubic 0.025729800m3

Vehicle Applications

Make Model Year Start - Year End Series Body Type Engine Details Drivetrain
Toyota LandCruiser Prado 2024 - 2025 J250 SUV 2.8 D MHEV 4x4 SUV 2.8L | Diesel/Electro AWD

Reviews

Ultimate9 Nudge Bars

Designed, Engineered & Manufactured in Australia with Australian Steel.

Steel Construction

Manufactured with 100% Australian-made, 3mm steel for a rigid design.

Form-Fitting

Designed with modern vehicle styling in mind, contouring to the vehicle for minimal forward projection.

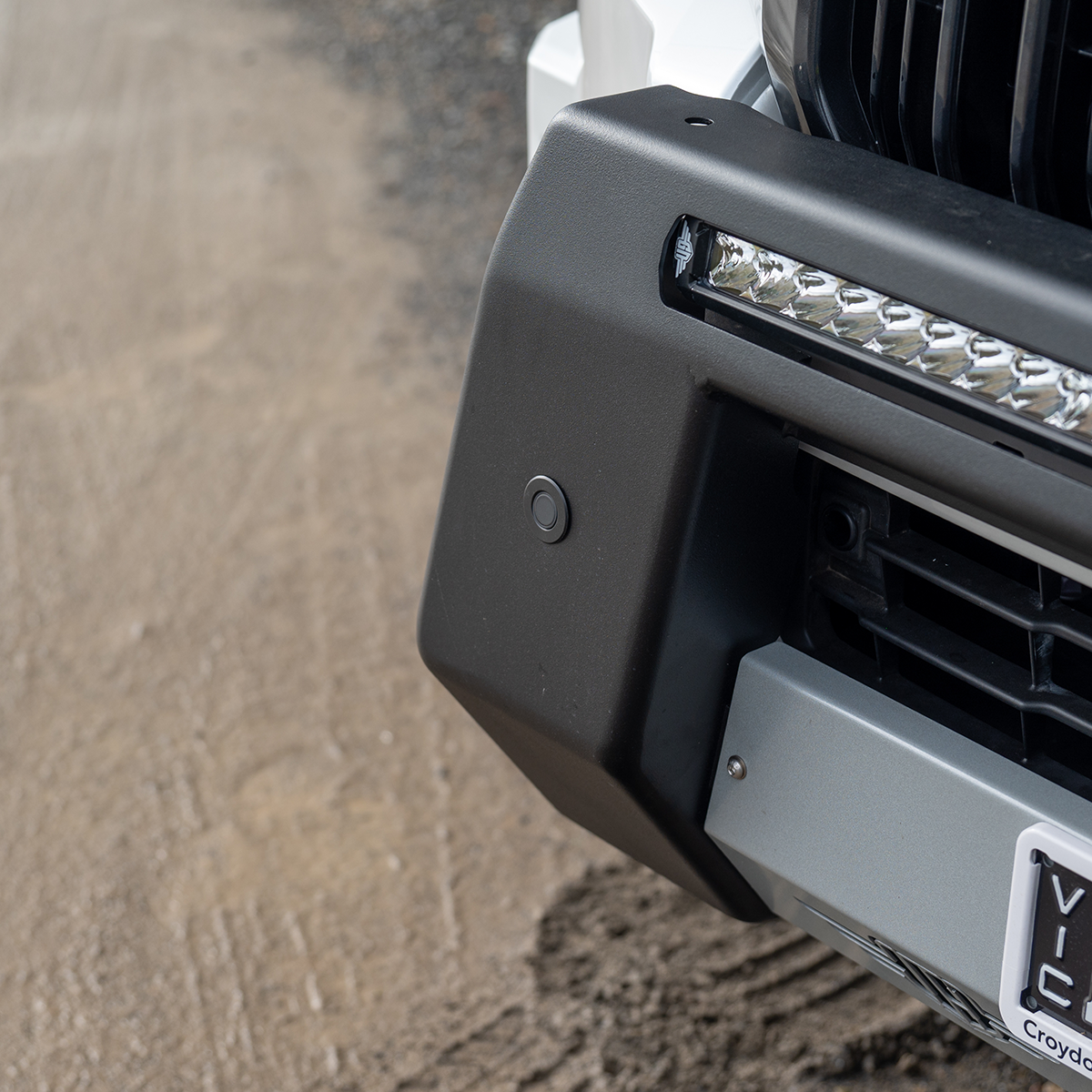

Integrated Light Bar

Bundled with an Ultimate9 LED Light Bar that nestles behind the front face with access holes for adjustment.

Coating

Zinc-plated for corrosion protection & powder coated with Dulux Mannex Black textured powder coat with a Silver Pearl coated centre pan.

Accessory Provision

Laser-cut points are provided for attaching accessories such as communication antennas and additional Ultimate9 LED Light Bars, whenever possible.

ADR Compliant & Airbag Compatible

Designed to meet ADR standards and tested for airbag compatibility.
