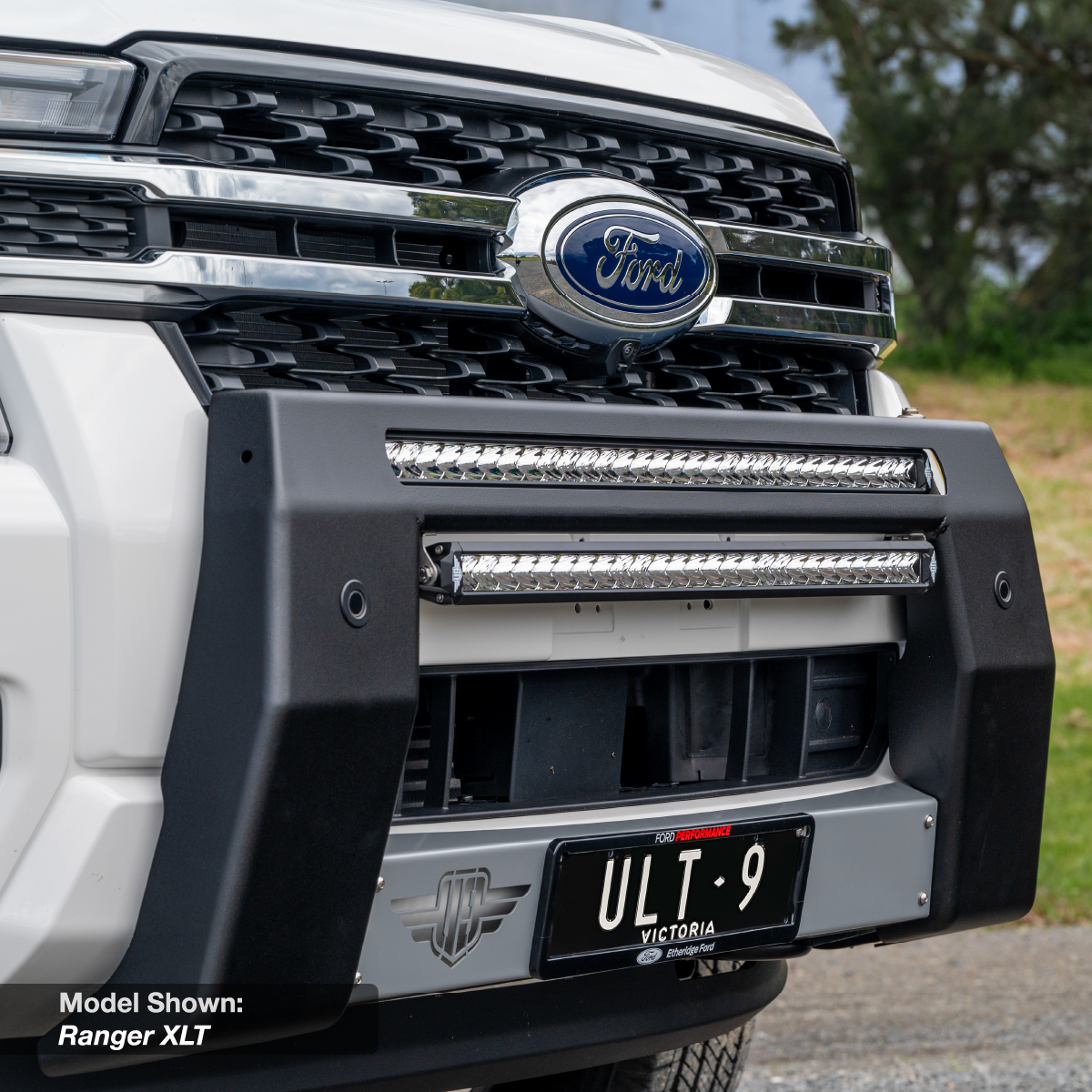

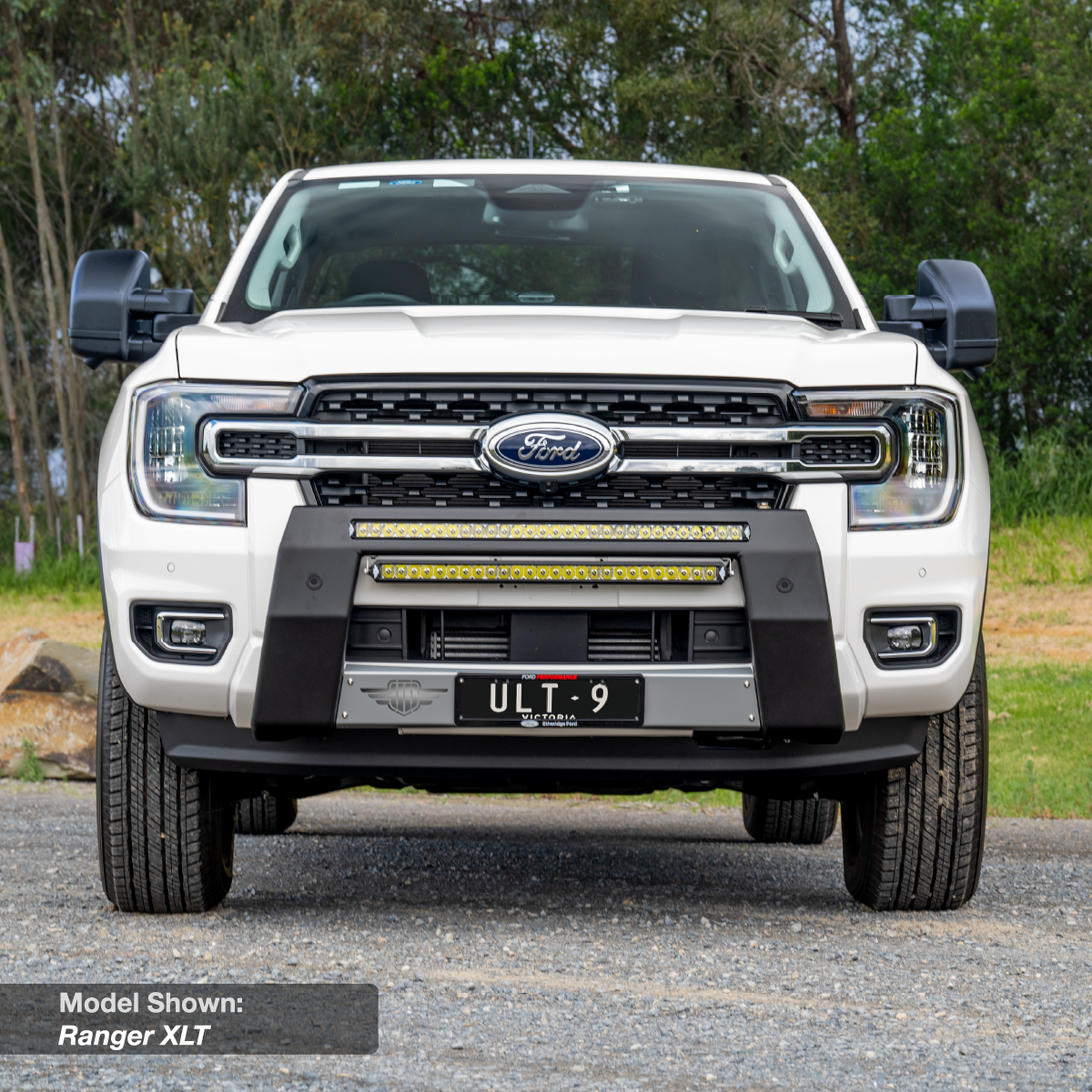

Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.

Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.

Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.

Finished in a Black textured powder coat with a Silver coated centre pan for corrosion protection and a modern feel.



Compatibility:
Compatible with the following Ranger Badge Models:

Platinum
Sport
XLT
XLS
XL


Features:
Australian-made: Designed, engineered, and manufactured in Australia.
Steel Frame: 100% Australian-made steel.
Airbag Compatible: Tested for airbag compatibility
ADR Compliant: Designed to meet ADR standards.

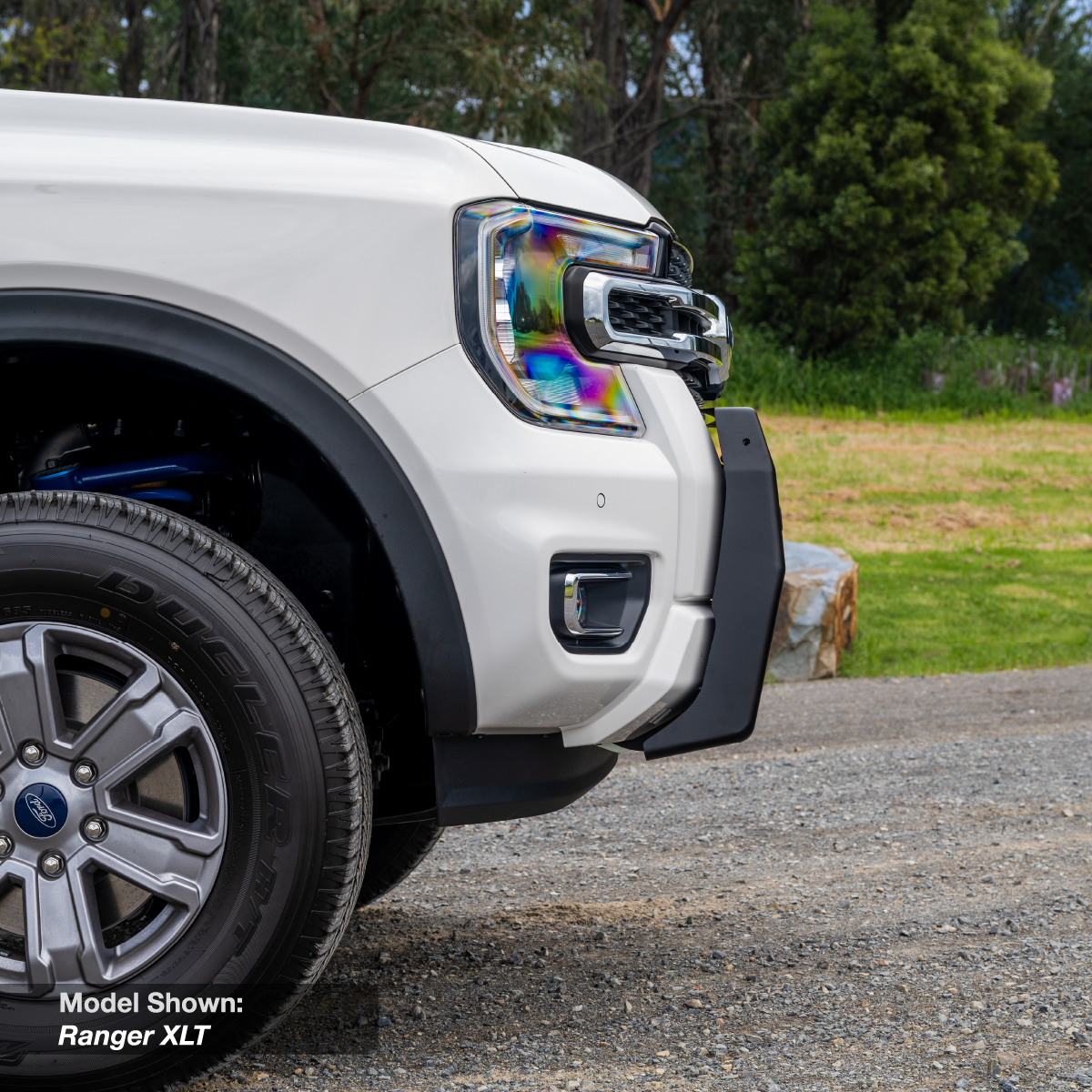

Low Profile: Over bumper design with minimal forward projection
LED Lighting: Includes an Ultimate9 LED Light Bar 30"
Lightweight: Weighing under 30Kg with included light bar
Corrosion Protected: Zinc-plated.
Finish: Black textured powder coat & silver coated centre pan

Kit Includes:
Models with upfitter
Nudge Bar
Ultimate9 LED Light Bar 30"
DTP Connector Kit
Parking Sensor Extension Looms
Parking Sensor Holders
Parking Sensor Blanking Plates
Slimline Number Plate Mount
Installation Hardware
Instructions

Models without upfitter
Nudge Bar
Ultimate9 LED Light Bar 30"
Ultimate9 Auxiliary Loom Twin Output Connector
Illuminated Rocker Switch
High Beam Adaptor
Parking Sensor Extension Looms
Parking Sensor Holders
Parking Sensor Blanking Plates
Slimline Number Plate Mount
Installation Hardware
Instructions





Specifications:
Material (nudge bar): 3mm steel
Material (centre pan): 1.6mm steel
Material (mounts): 6mm steel
Protective coat: Zinc Plated
Finish Coat (nudge bar): Black textured Powder Coat
Finish Coat (centre pan): Silver Powder Coat
ADR Compliant
Airbag Compatible
Dimensions: (L) x (W) x (H)
Weight: < 30Kg

Barcode 787099451561
Brand Ultimate9
Shipping Weight 29.0000kg
Shipping Width 0.570m
Shipping Height 0.370m
Shipping Length 0.122m
Shipping Cubic 0.025729800m3

Vehicle Applications

Make Model Year Start - Year End Series Body Type Engine Details Drivetrain
Ford Ranger 2022 - 2025 PY Ute 2.0 Bi-Turbo Ute 2.0L | Diesel RWD
Ford Ranger 2022 - 2025 PY Ute 3.0 Turbo 4x4 Ute 3.0L | Diesel AWD
Ford Ranger 2022 - 2025 PY Platform/Chassis 2.0 Bi-Turbo Platform/Chassis 2.0L | Diesel RWD
Ford Ranger 2022 - 2025 PY Ute 2.0 Bi-Turbo 4x4 Ute 2.0L | Diesel AWD
Ford Ranger 2022 - 2025 PY Platform/Chassis 2.0 Bi-Turbo 4x4 Platform/Chassis 2.0L | Diesel AWD
Ford Ranger 2022 - 2025 PY Platform/Chassis 3.0 Turbo 4x4 Platform/Chassis 3.0L | Diesel AWD
Ford Everest 2022 - 2025 UB SUV 2.0 Bi-Turbo SUV 2.0L | Diesel RWD
Ford Everest 2022 - 2025 UB SUV 2.0 Bi-Turbo 4x4 SUV 2.0L | Diesel AWD
Ford Everest 2022 - 2025 UB SUV 3.0 Turbo 4x4 SUV 3.0L | Diesel AWD

Reviews

Ultimate9 Nudge Bars

Designed, Engineered & Manufactured in Australia with Australian Steel.

Steel Construction

Manufactured with 100% Australian-made, 3mm steel for a rigid design.

Form-Fitting

Designed with modern vehicle styling in mind, contouring to the vehicle for minimal forward projection.

Integrated Light Bar

Bundled with an Ultimate9 LED Light Bar that nestles behind the front face with access holes for adjustment.

Coating

Zinc-plated for corrosion protection & powder coated with Dulux Mannex Black textured powder coat with a Silver Pearl coated centre pan.

Accessory Provision

Laser-cut points are provided for attaching accessories such as communication antennas and additional Ultimate9 LED Light Bars, whenever possible.

ADR Compliant & Airbag Compatible

Designed to meet ADR standards and tested for airbag compatibility.

Ultimate9 Nudge Bar Tutorial
