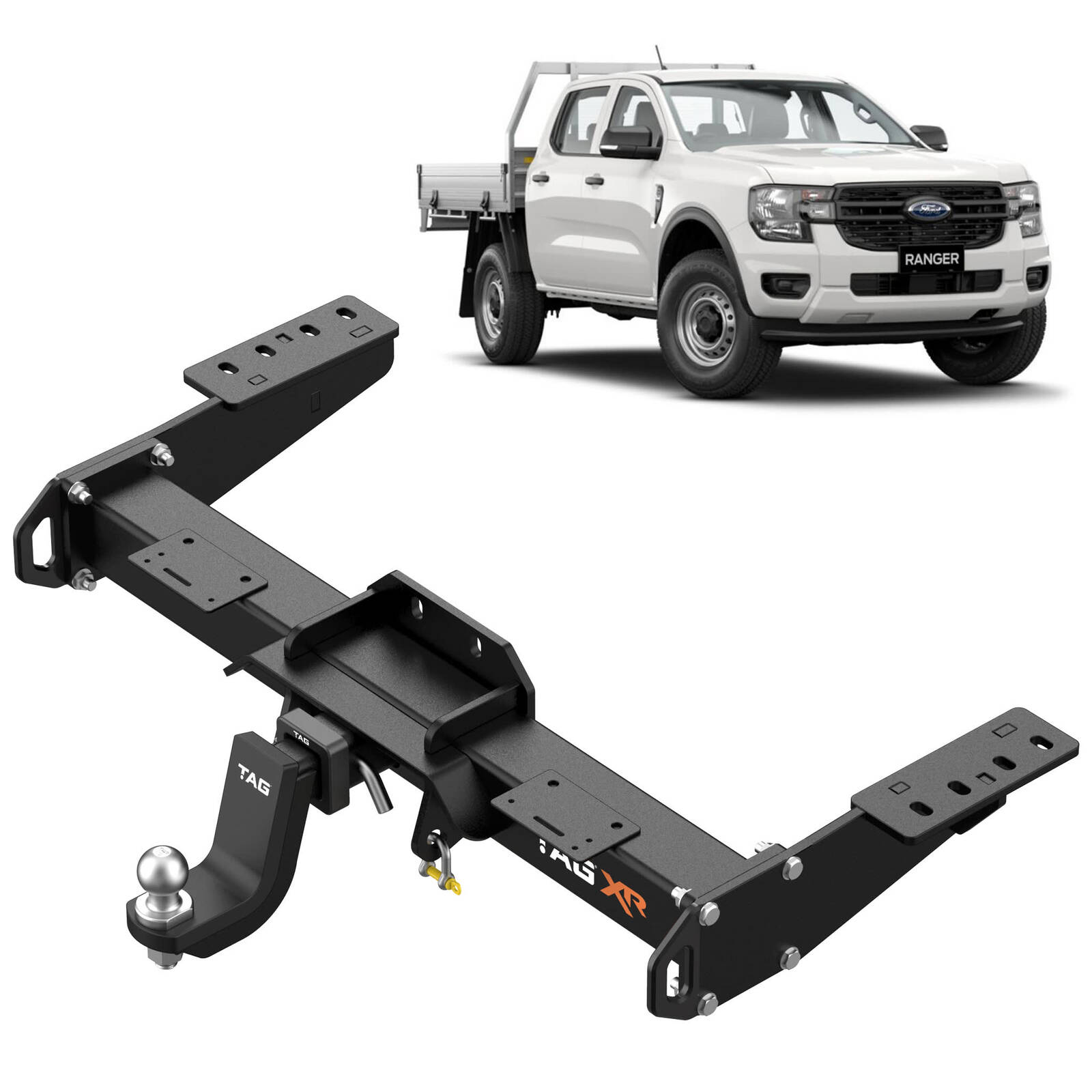

Fits cab chassis models with no rear bumper step. Tag Extreme Recovery towbar kit including Erich Jaeger CAN-Bus Wiring harness with 7-pin trailer plug.

Kit Includes:

  • TXR836 4x4 Recovery Towbar

  • 750150EJ CAN-Bus Wiring Harness and 7 Pin Flat Plug

Tag Extreme Recovery Towbar

  • 89mm x 89mm Extreme Duty Reinforced Crossbar

  • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.

Erich Jaeger Towbar Wiring

  • 7 Pin Flat

  • CAN-Bus Wiring

  • FORD RANGER (05/22-) T6.2 / P703 Series

  • Includes 7-pin flat plug

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Barcode 9340407055694
Brand TAG
Fog Cut Off Automatic
Towbar Capacity [Kg] 3500
Bumper Removed During Fitment No
Fitting Time [Min.] 60
Tow Ball Mount L4171TXR
Style 7 Pin Flat
Wiring Option CANBUS Direct Fit Wiring
Reverse Sensor Cut Off Coding required
Type Plugs & Sockets
Diagnostic Coding Optional For All Features
Exposure Exposed
Bumper Cut Out Required No
Hitch Type 50mm Square Hitch Receiver
Towbar Class Heavy Duty (4x4 Recovery)
Coating Textured Powder Coated
Shipping Weight 25.2000kg
Shipping Width 0.230m
Shipping Height 0.410m
Shipping Length 1.190m
Shipping Cubic 0.112217000m3
Assembled Length 1.190m
Assembled Height 0.410m
Assembled Width 0.230m
